In [1] a small multi-objective problem was described. In part 1 of this post [2], I showed how we generate the set of Pareto optimal solutions using a complete enumeration scheme.
We want to find all Pareto optimal solutions (i.e. non-dominated solutions) consisting of a set of items (rows in the table below). We have the following data:
We want to optimize the following objectives:
The first part is just the linear model: we have a scalarizing objective function, and the linear constraint that calculates the objectives \(f_k\).
In the second part we perform a loop, where we both minimize and maximize each \(f_k\).
It is interesting to see the differences between the implicit bounds we calculated here and the original constraints:
We first observe that all lower bounds stay at zero. Actually a solution with \(x_i=f_k=0\) is a feasible and even non-dominated solution. However, on the upper bounds we did a really good job. These upper bounds were tightened significantly.
In this algorithm we look for up to 1000 solutions. We implemented the constraints that make sure \(f_k\) is not-dominated by earlier solutions, and we use an objective that guides the solver towards the efficient frontier. In addition, for no good reason, I also added a constraint that works on the \(x\) space: forbid previously found integer solutions.
Note that in each cycle the MIP problem becomes bigger:
This gives the same 83 solutions as we found in [2].
![]()
Summary of the problem
---- 42 PARAMETER data %%% data set with 12 items
cost hours people
Rome 100055
Venice 200110
Torin 50032
Genova 70078
Rome2 102056
Venice2 220110
Torin2 52032
Genova2 72074
Rome3 105055
Venice3 25018
Torin3 55038
Genova3 75078
We want to optimize the following objectives:
- Maximize number of items selected
- Minimize total cost
- Minimize total hours
- Minimize total number of people needed
In addition we have a number of simple bound constraints:
- The total cost can not exceed $10000
- The total number of hours we can spend is limited to 100
- There are only 50 people available
Non-dominated solutions.
We say that when comparing two feasible solution points \(a\) and \(b\), \(a\) dominates \(b\) if:
In this part I will show the GAMS code, that implements this.
We need to specify the problem data:
I will implement the implications as big-M constraints. This means we want to have small values for our big-M's. To obtain these it is useful to form tight bounds on the objectives \(f_k\).
- All the objectives of \(a\) are better or equal to the objectives of \(b\) and
- for one objective \(k\) we have \(f_k(a)\) is strictly better than \(f_k(b)\).
This means \(a\) does not dominate \(b\) if \(f_k(b)\) is strictly better than \(f_k(a)\) in one objective \(k\). Or if all objectives are the same.
Idea
The idea is to generate MIP solutions that have a preference to go to the efficient frontier using some weights, and then add constraints that say: we should be at least better in one objective. I.e. suppose we have collected already solutions \((\bar{x}_{i,s}, \bar{f}_{k,s})\) in previous cycles \(s\), then we require:\[ \begin{align} & \delta_{k,s} = 1 \Rightarrow f_k \text{ is better than } \bar{f}_{k,s} \\ & \sum_s \delta_{k,s} \ge 1\\ & \delta_{k,s}\in \{0,1\}\end{align}\] I.e. our new solution is not dominated by previous record solutions.
This approach is documented in [3].
Note: I think we are just handwaving a bit about the possibility two solutions with all the same objectives: these are also non-dominated. For our problem this turns out not to be an issue.
Note: I think we are just handwaving a bit about the possibility two solutions with all the same objectives: these are also non-dominated. For our problem this turns out not to be an issue.
Approach 2: MIP models with non-dominated constraints
In this part I will show the GAMS code, that implements this.
2.1 Organize the data
We need to specify the problem data:
sets i 'items'/Rome,Venice,Torin,Genova,Rome2,Venice2, Torin2,Genova2,Rome3,Venice3,Torin3,Genova3/ k 'objectives'/cost,hours,people,items/ ; table data(i,k) cost hours people Rome 1000 5 5 Venice 200 1 10 Torin 500 3 2 Genova 700 7 8 Rome2 1020 5 6 Venice2 220 1 10 Torin2 520 3 2 Genova2 720 7 4 Rome3 1050 5 5 Venice3 250 1 8 Torin3 550 3 8 Genova3 750 7 8 ; data(i,'items') = 1; parameter UpperLimit(k) / cost 10000 hours 100 people 50 /; * if zero or not listed use INF upperLimit(k)$(UpperLimit(k)=0) = INF; parameter sign(k) 'sign: +1:min, -1:max'/ (cost,hours,people) +1 items -1 /; |
2.2 Form Box
I will implement the implications as big-M constraints. This means we want to have small values for our big-M's. To obtain these it is useful to form tight bounds on the objectives \(f_k\).
*--------------------------------------------- * Basic Model *--------------------------------------------- parameter c(k) 'objective coefficient'; variable z 'total single obj'; positivevariable f(k) 'obj values'; binaryvariable x(i) 'select item' equations scalobj 'scalarized objective' objs(k) ; scalobj.. z =e= sum(k, c(k)*f(k)); objs(k).. f(k) =e= sum(i, data(i,k)*x(i)); * some objs have an upper limit f.up(k) = upperLimit(k); option optcr=0,limrow=0,limcol=0,solprint=silent,solvelink=5; *--------------------------------------------- * find lower and upper limits of each objective *--------------------------------------------- model m0 'initial model to find box'/all/; parameter fbox(k,*) 'new bounds on objectives'; alias(k,obj); loop(obj, c(obj) = 1; solve m0 minimizing z using mip; fbox(obj,'min') = z.l; solve m0 maximizing z using mip; fbox(obj,'max') = z.l; c(obj) = 0; ); display upperLimit,fbox; * range = max - min fbox(k,'range') = fbox(k,'max')-fbox(k,'min'); * tighten objectives f.lo(k) = fbox(k,'min'); f.up(k) = fbox(k,'max'); |
The first part is just the linear model: we have a scalarizing objective function, and the linear constraint that calculates the objectives \(f_k\).
In the second part we perform a loop, where we both minimize and maximize each \(f_k\).
It is interesting to see the differences between the implicit bounds we calculated here and the original constraints:
---- 81 PARAMETER UpperLimit
cost 10000.000, hours 100.000, people 50.000, items +INF
---- 81 PARAMETER fbox new bounds on objectives
max
cost 6810.000
hours 45.000
people 50.000
items 9.000
We first observe that all lower bounds stay at zero. Actually a solution with \(x_i=f_k=0\) is a feasible and even non-dominated solution. However, on the upper bounds we did a really good job. These upper bounds were tightened significantly.
2.3 MOIP algorithm
*--------------------------------------------- * MOIP algorithm *--------------------------------------------- sets maxsols /sol1*sol1000/ sols(maxsols) 'found solutions' ; binaryvariable delta(maxsols,k) 'count solutions that are better'; equation nondominated1(maxsols,k) nondominated2(maxsols,k) atleastone(maxsols) cut(maxsols) ; parameter solstore(maxsols,*) M(k) 'big-M values' ; M(k) = fbox(k,'range'); scalar tol 'tolerance: improve obj by this much'/1/; * initialize solstore(maxsols,i) = 0; nondominated1(sols,k)$(sign(k)=+1).. f(k) =l= solstore(sols,k)-tol + (M(k)+tol)*(1-delta(sols,k)); nondominated2(sols,k)$(sign(k)=-1).. f(k) =g= solstore(sols,k)+tol - (M(k)+tol)*(1-delta(sols,k)); atleastone(sols).. sum(k, delta(sols,k)) =g= 1; cut(sols).. sum(i, (2*solstore(sols,i)-1)*x(i)) =l= sum(i,solstore(sols,i)) - 1; * initialize to empty set sols(maxsols) = no; * set weights to 1 (adapt for min/max) c(k) = sign(k); scalar ok /1/; model m1 /all/; loop(maxsols$ok, solve m1 minimizing z using mip; * optimal or integer solution found? ok = 1$(m1.modelstat=1 or m1.modelstat=8); if(ok, sols(maxsols) = yes; solstore(maxsols,k) = round(f.l(k)); solstore(maxsols,i) = round(x.l(i)); ); ); display solstore; |
In this algorithm we look for up to 1000 solutions. We implemented the constraints that make sure \(f_k\) is not-dominated by earlier solutions, and we use an objective that guides the solver towards the efficient frontier. In addition, for no good reason, I also added a constraint that works on the \(x\) space: forbid previously found integer solutions.
Note that in each cycle the MIP problem becomes bigger:
- we add non-dominated constraints
- we add an integer cut
- we add binary variables \(\delta_{s,k}\) related to the non-dominated constraints.
2.4 Solution

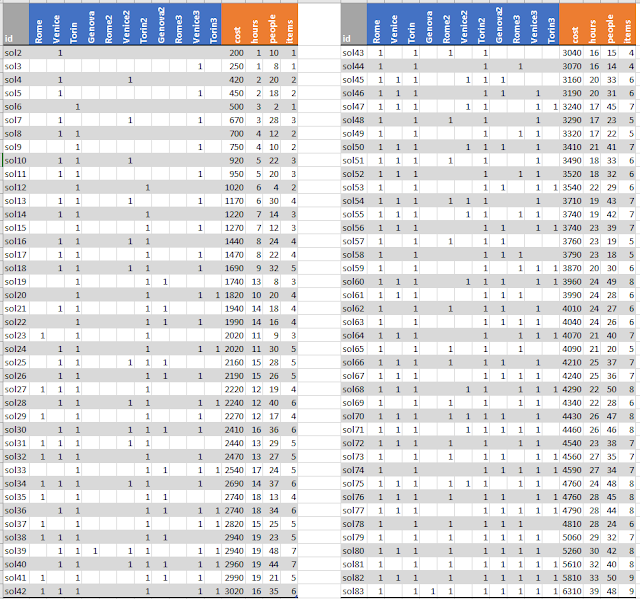

(Solution 0 with all zeroes is not printed here).
References
- Best Combination Algorithm of Complex Data with Multiple Constraints, https://stackoverflow.com/questions/55514627/best-combination-algorithm-of-complex-data-with-multiple-contraints
- Generating Pareto optimal points (part 1), https://yetanothermathprogrammingconsultant.blogspot.com/2019/04/generating-pareto-optimal-points-part-1.html
- John Sylva, Alejandro Crema: "A method for finding the set of non-dominated vectors for multiple objective integer linear programs", EJOR 158 (2004), 46-55.
